Illustrative Example

TCRA is a Python package designed to perform scenario-based tropical cyclone risk analysis. The software includes capability to:

1. Scenario-hazard estimation: peak gust wind speed at sites

2. Vulnerability analysis using fragility curves

3. Failure Probability Estimation: Monte Carlo Simulation

4. Loss Estimation: Damage Repair Cost

5. Recovery Simulations

6. Rahabilitation Scenario Simulation

7. Plotting Outputs on OpenStreetMap

8. Social Impact Analysis

9. EPN Damage Analysis

10. Functionality Analysis

Importing Dependencies

import warnings
import collections
import concurrent.futures
import folium
import numpy as np
import pandas as pd
import matplotlib
import matplotlib.pylab as plt
import matplotlib.patches as mpatches
from matplotlib.colors import ListedColormap
from scipy.stats import expon, lognorm
from scipy.spatial import distance
from past.builtins import xrange
import tcra
from tcra.Cyclone import CycloneParameters
from tcra.Vulnerability import FragilityAnalysis
from tcra.DamageProbability import DamageProbabilityCalculator
from tcra.Fragility import rehab_fragility_curves, fragility_curves_epn, fragility_curves
from tcra.Plot import plot_scatter
from tcra.Probplot import plot_lognormal_distribution
from tcra.Interactive import plot_interactive_map
from tcra.Recovery import rep, rep_EPN, recovery_monte_carlo_simulation
from tcra.Cost import map_cost
from tcra.SocialAnalysis import categorize_area, categorize_areas
from tcra.Functionality import calculate_fs
from tcra.DR import damage_ratio
from typing import List

1. Hurricane Track Import, Building Data Import, Estimating Peak Velocity

# Import Hurricane Historical Track
track_df=pd.read_csv('InputTracks/Hur_91.csv')

# Import Hurricane Historical Track
track_df=pd.read_csv('91_Track1.csv')

# this data includes time, lat, long and central pressure
track_df.head(2)

# Import Building Data
blg=pd.read_csv('sample_buildings.csv')

blg.head(2)

# Inventory Size
blg.shape

Table: Building Structural Archetypes.

Code	Description - Structure Type
MSF1	Masonry single-family 1 story
MSF2	Masonry single-family ≥ 2 stories
MMUH1	Masonry multi-family 1 story
MMUH2	Masonry multi-family 2 stories
MMUH3	Masonry multi-family ≥ 3 stories
MLRM1	Masonry LR Strip Mall up to 15 ft
MLRM2	Masonry LR Strip Mall > 15 ft
MLRI	Masonry LR Industrial/Warehouse/Factory Buildings
CERBL	Concrete Engineered Residential LR
CERBM	Concrete Engineered Residential MR
CERBH	Concrete Engineered Residential HR
CECBL	Concrete Engineered Commercial LR
CECBM	Concrete Engineered Commercial MR
CECBH	Concrete Engineered Commercial, HR
SPMBS	Steel Pre-Engineered Metal Small
MHPHUD	Manufactured Home Pre-Housing and Urban Development

Note: LR: Low-Rise (1-2 Stories); MR: Mid-Rise (3-5 Stories); High-Rise (6+ Stories).

# Plotting Structural Atchetypes Summary
structuretype_counts=blg.type.value_counts()
structuretype_counts.plot(kind='bar')
plt.xlabel('Occupancy Type')
plt.ylabel('%Buildings')
plt.show()

Figure: Building Invetory - Structural Archetypes

# Plotting Occupancy Types Summary
occupancy_counts = blg.Occupancy.value_counts(normalize=True)
occupancy_counts.plot(kind='bar')
plt.xlabel('Occupancy Type')
plt.ylabel('%Buildings')
plt.show()

Table: Building Occupancy Class.

Code	Description - Occupancy Class
RES1	Single-family Dwelling
RES2	Mobile Home
RES3	Multi-family Dwelling
RES4	Temporary Lodging
RES5	Institutional Dormitory
RES6	Nursing Home
COM1	Retail Trade
COM2	Wholesale Trade
COM3	Personal and Repair Services
COM4	Professional/Technical/Business Services
COM5	Banks/Financial Institutions
COM6	Hospital
COM7	Medical Office/Clinic
COM8	Entertainment & Recreation
COM9	Theaters
COM10	Parking
IND1	Heavy Industrial
IND2	Light Industrial
IND3	Food/Drugs/Chemicals
IND4	Metals/Minerals Processing
IND5	High Technology
IND6	Construction
AGR1	Agriculture
REL1	Church/Membership Organization
GOV1	General Services
GOV2	Emergency Response
EDU1	Schools/Libraries
EDU2	Colleges/Universities

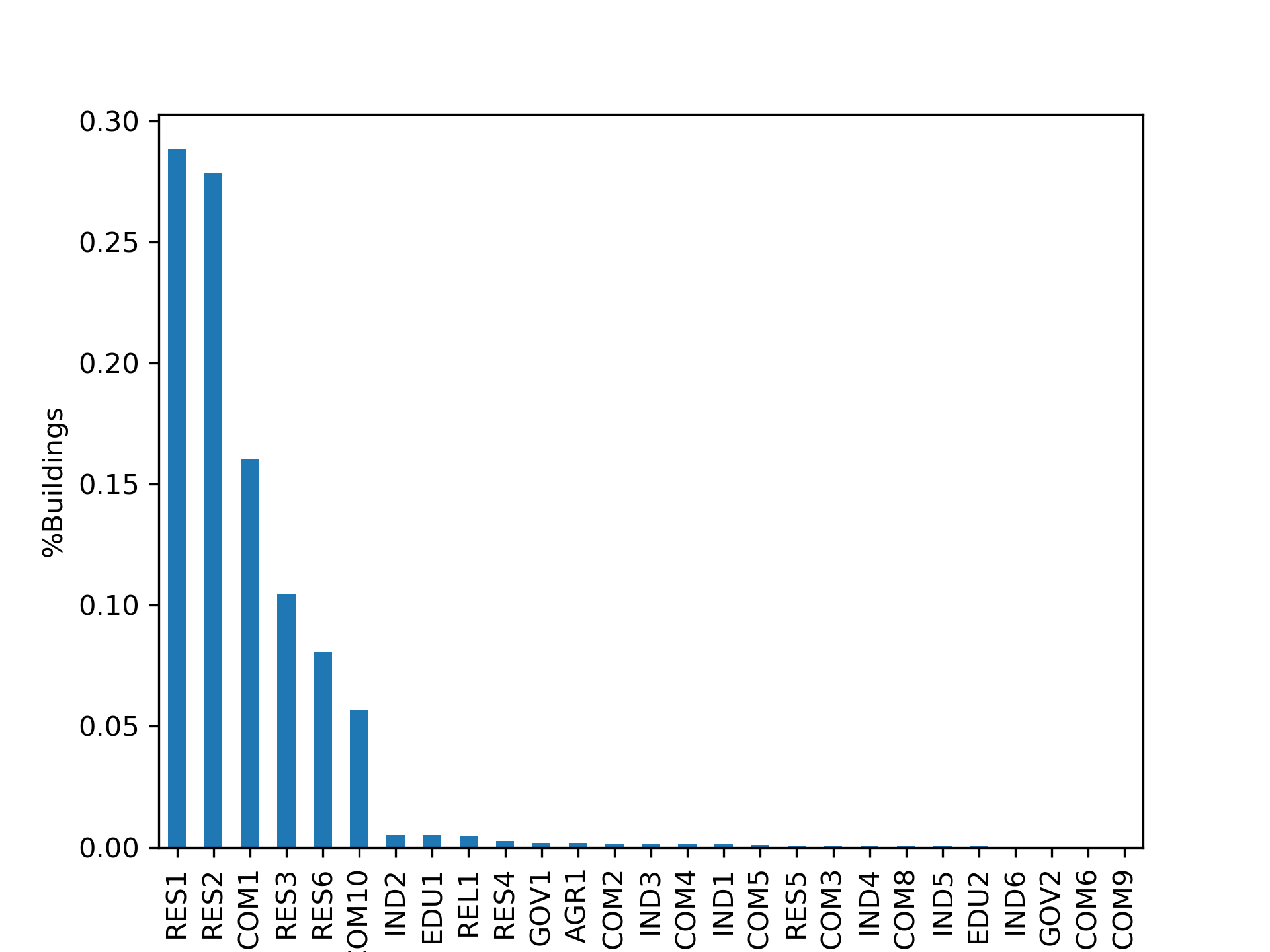

Figure: Building Invetory - Occupancy Types

1.1. Scenario Hurricane - Wind Speed Simulation

# Running wind hazard module to estimate Cyclone track characteristics and Wind Speeds
# df_bdg_wind: database return with wind speed, VG: gust wind velocity
cyclone_parameters = CycloneParameters(track_df)
df_track = cyclone_parameters.estimate_parameters()
df_bdg_wind, VG = cyclone_parameters.calculate_wind_speeds(df_track, blg)

df_bdg_wind.head(2)
df_bdg_wind.drop(['ind'], axis=1, inplace=True)

1.2. Plotting Peak Gust Wind Speed for All Buildings

VG.plot.line(legend=None)
plt.xlabel('Time Steps')
plt.ylabel('Wind Speed(mph)')
plt.show()

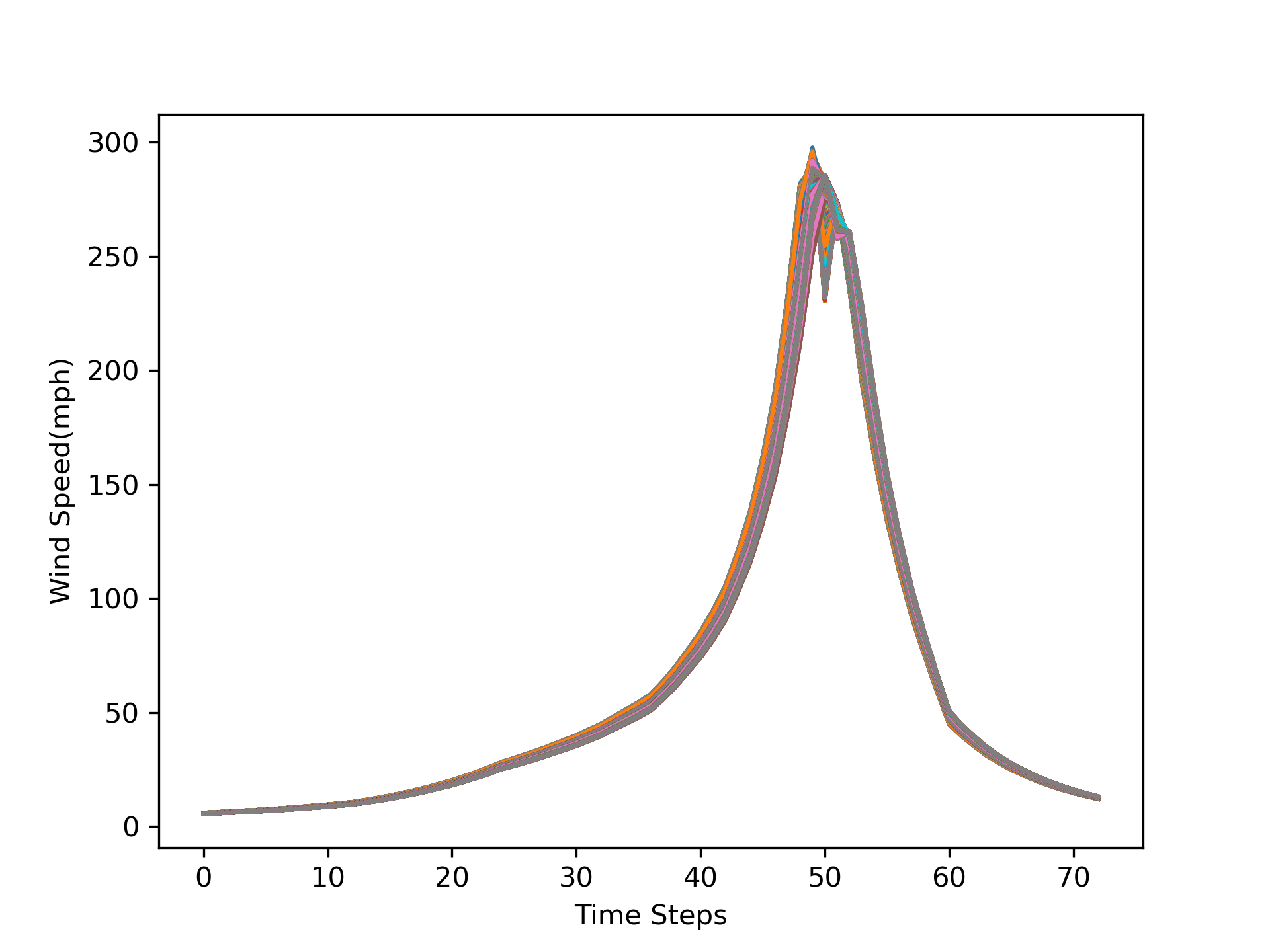

Figure: Wind Speed during Cyclone.

2. Vulnerability Analysis - Damage States Simulation

# Assign random seed to reproduce random numbers
seed=1234
np.random.seed(seed)

# Building invetory dataframe
df_bdg_wind.head(2)

building_data = df_bdg_wind

# Defining Damage States - four damage states as per HAZUS (FEMA)
DStates=['Slight','Moderate','Extensive', 'Complete']

# Running Vulnerability Analysis based on Fragility Curves to assign Damage States to Structures
fra= FragilityAnalysis(fragility_curves)
Pr = fra.estimate_damage_state(building_data)
damage_state = fra.sample_damage_state(Pr, DStates,seed)

# Defining damage states to dataframe
ids, statuses = damage_state
df_ds = pd.DataFrame({'id': ids, 'status': statuses})

# Mapping Damage States [DStates] to Structures
DamageStateMap = {None: 0, 'Slight': 1, 'Moderate': 2, 'Extensive': 3, 'Complete': 4}
df_ds['dmg'] = df_ds['status'].map(DamageStateMap)

# Adding columns to estimate damage State Probabilities (LS: Limit State, DS: Damage State)
DS_Prob=Pr
DS_Prob['LS1'] = DS_Prob['Slight']
DS_Prob['LS2'] = DS_Prob['Moderate']
DS_Prob['LS3'] = DS_Prob['Extensive']
DS_Prob['LS4'] = DS_Prob['Complete']
DS_Prob['DS0'] = 1 - DS_Prob['Slight']
DS_Prob['DS1'] = DS_Prob['Slight'] - DS_Prob['Moderate']
DS_Prob['DS2'] = DS_Prob['Moderate'] - DS_Prob['Extensive']
DS_Prob['DS3'] = DS_Prob['Extensive'] - DS_Prob['Complete']
DS_Prob['DS4'] = DS_Prob['Complete']

DS_Prob.head(2)

# Merging Assigned Damage States (dmg) and DS probabilities to structure inventory
result_blg_damage=pd.merge(DS_Prob, df_ds, on='id')

result_blg_damage.head(2)

# plotting wind speed
plot_scatter(result_blg_damage, 'x', 'y', 'mph',  colorbar_label='mph', save_path='wind_speed.png')

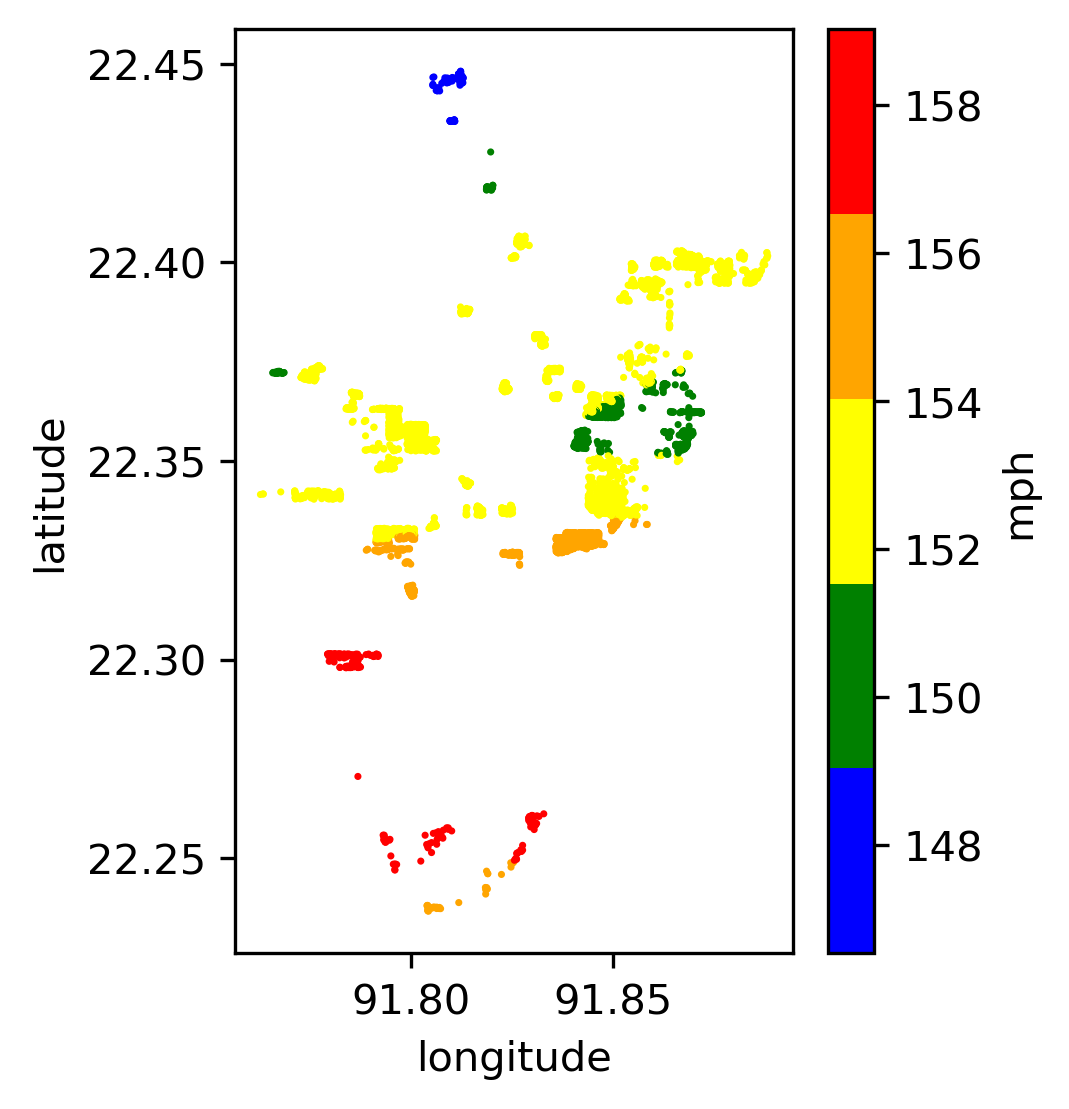

Figure: Wind Speed Map.

# plotting damage states
plot_scatter(result_blg_damage, 'x', 'y', 'dmg',  colorbar_label='dmg', save_path='blg_dmg_states_unrehab.png')

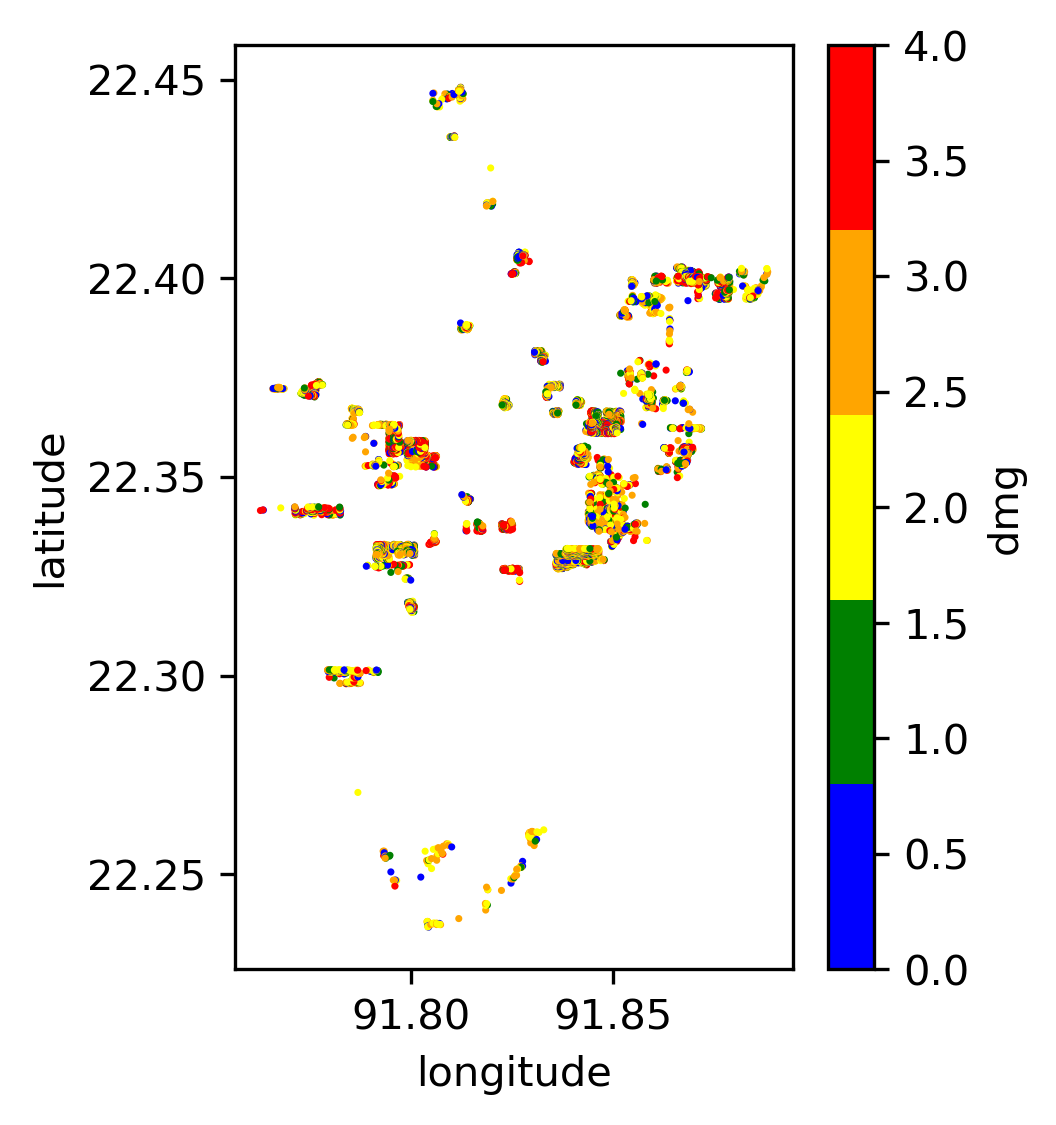

Figure: Damage States Map.

3. Failure Probability Estimation - Monte Carlo Simulation

# Inventory results from Hazard and Vulnerability Analyses
result_blg_damage.head(2)

# Defining Damage Intervals and Failure State (i.e., DS3 and DS4 will considered failure)
bldg_result=result_blg_damage
damage_interval_keys=['DS0', 'DS1', 'DS2', 'DS3', 'DS4']
failure_state_keys=['DS3', 'DS4']
num_samples=10

# Estimating Failure Probabilites
calculator = DamageProbabilityCalculator(failure_state_keys)
dt, ki = calculator.sample_damage_interval(bldg_result, damage_interval_keys, num_samples, seed)

# covert result to dataframe
df_bldg = pd.DataFrame({'id': ki,'pf': dt})

df_bldg.head(2)

# Merging failure probability to structural inventory data
result_bldg_pf=pd.merge(result_blg_damage, df_bldg, on='id')

result_bldg_pf.head(2)

# plotting damage failure probability
plot_scatter(result_bldg_pf, 'x', 'y', 'pf',  colorbar_label='pf', save_path='pf.png')

Figure: Probability of Failure (pf) map.

# Plotting fitted lognormal PDF & CDF of prob. of failure
plot_lognormal_distribution(result_bldg_pf)

Figure: Lognormal Distribution of Probability of Failure.

4. Loss Estimation - Damage Repair Cost

# Calculating replacement cost of individual building, UC: Unit Cost and RCost: Replacement Cost
df_cost = map_cost(blg)

df_cost.head(2)

# Merging cost and damage outputs
df_cost_dmg=pd.merge(df_cost, df_ds, on='id')

# Generating Damage Ratio of each building
Loss = damage_ratio(df_cost_dmg)

# Estimating Physical Damage Repair Cost ($) for each building
Loss['PhyLoss']=Loss['RCost']*Loss['DRatio']

# Project Loss due to Physical Damage in $USD
TotalLoss=Loss.PhyLoss.sum()
TotalPhyLoss=Loss.PhyLoss.sum()
print(f"{TotalLoss / 1000000:.1f} Million USD")

5. Recovery Simulations

# Building inventory with damage state
building_dmg= pd.merge(blg, df_ds, on='id')
result_blg_dmg=building_dmg

# Simulating Recovery Time of Buildings
recovery_time = rep(result_blg_dmg)
result_blg_dmg['RT_bdg'] = list(recovery_time)

bb = []
tt = list(range(0, 1000, 5))
for T in tt:
    bb.append(result_blg_dmg[result_blg_dmg.RT_bdg < T].shape[0])

bb=pd.Series(bb)*100/result_blg_dmg.shape[0]

x = list(tt)
y1 = list(bb)
rec_bldg=pd.DataFrame({'T': x,'Rec': y1})

plt.figure(figsize=(6, 4))
plt.plot(x, y1, label='PhyRecovery: Single Simulation')
plt.xlabel("Time (Days)")
plt.ylabel("% Recovery")
plt.legend()
plt.xlim(0, 900)
plt.show()

# Recovery Analysis - Multiple Recovery Scenarios using Monte Carlo Simulation
x, all_simulations, mean, minimum, maximum = recovery_monte_carlo_simulation(result_blg_dmg, num_simulations=10)


# Plotting all simulations results
plt.figure(figsize=(6, 4))
for simulation in all_simulations:
    plt.plot(x, simulation, color='lightgray', alpha=1)
plt.plot(x, mean, color='blue', label='Mean Recovery')
plt.xlabel("Time (Days)")
plt.ylabel("% Recovery")
plt.legend()
plt.xlim(0, 900)
plt.show()

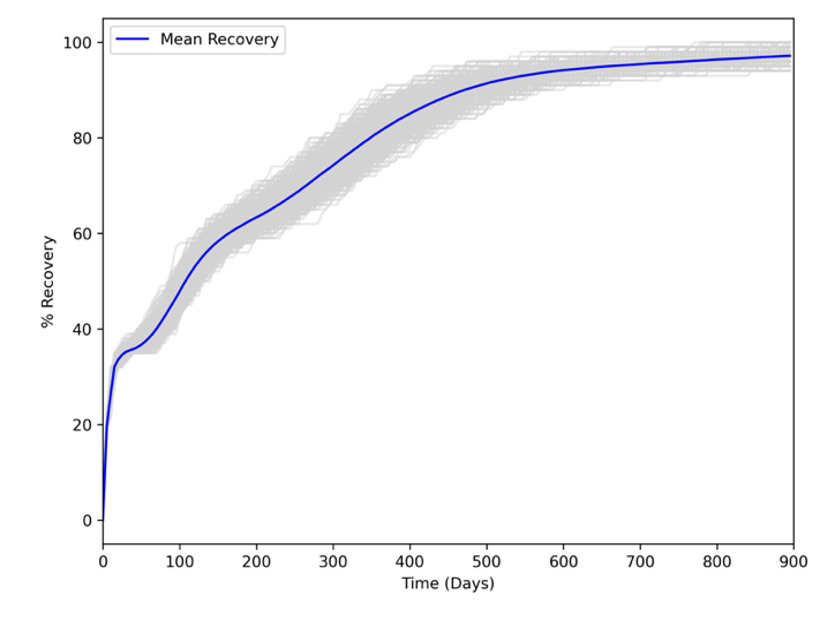

Figure: Recovery.

6. Rahab Simulation

# Building damage outcomes and probability of failures
output_building=result_bldg_pf

# Repairing buildings that has pf>0.7
output_building.pf[output_building.pf>0.7].shape[0]/output_building.pf.shape[0]

# Updating Building Type for buildings prioritized for repair, 'type_R', _R represets rehab
df=output_building
df['ntype'] = df.apply(lambda row: f"{row['type']}{'_R'}" if row['pf'] >0.4 else row['type'], axis=1)

df=df.drop(columns=['type'])
df.rename(columns={'ntype': 'type'}, inplace=True)

# rehab factor and updating fragility curves accordingly
rehab_factor = 1.3
fragility_curves_rehab = rehab_fragility_curves(rehab_factor)

DStates=['Slight','Moderate','Extensive', 'Complete']
fra= FragilityAnalysis(fragility_curves_rehab)
Pr_rehab = fra.estimate_damage_state(df)
damage_state_rehab = fra.sample_damage_state(Pr_rehab, DStates,seed)
ids, statuses = damage_state_rehab
df_ds = pd.DataFrame({'id': ids, 'status': statuses})
DamageStateMap = {None: 0, 'Slight': 1, 'Moderate': 2, 'Extensive': 3, 'Complete': 4}
df_ds['dmg'] = df_ds['status'].map(DamageStateMap)

DS_Prob=Pr_rehab
DS_Prob['LS1'] = DS_Prob['Slight']
DS_Prob['LS2'] = DS_Prob['Moderate']
DS_Prob['LS3'] = DS_Prob['Extensive']
DS_Prob['LS4'] = DS_Prob['Complete']
DS_Prob['DS0'] = 1 - DS_Prob['Slight']
DS_Prob['DS1'] = DS_Prob['Slight'] - DS_Prob['Moderate']
DS_Prob['DS2'] = DS_Prob['Moderate'] - DS_Prob['Extensive']
DS_Prob['DS3'] = DS_Prob['Extensive'] - DS_Prob['Complete']
DS_Prob['DS4'] = DS_Prob['Complete']
blg_dmg_rehab=pd.merge(DS_Prob, df_ds, on='id')

## Cost Info
new_blg_dmg_rehab = blg_dmg_rehab[['id', 'dmg']]
blg_dmg_rehab=pd.merge(df_cost, new_blg_dmg_rehab, on='id')

# new damage states of buildings after rehab
blg_dmg_rehab.head(2)

# Estimating physical replacement cost after applying rehab
result_p = damage_ratio(blg_dmg_rehab)
result_p['PhyLoss']=result_p['RCost']*result_p['DRatio']
TotalLoss=result_p.PhyLoss.sum()
print(f"{TotalLoss / 1000000:.1f} Million USD")

7. Plotting Interactive Outputs on Open Street Map - Damage States

# Plot Damage
node=blg_dmg_rehab.loc[0:,'x': 'y']
node_dmg=blg_dmg_rehab.loc[0:,'dmg']

plot_interactive_map(node, node_dmg, node_size=3, node_cmap_bins='cut', node_cmap=None, link_cmap=None)

Figure: Building Outputs on OpenStreetMap.

8. Social Impact Analysis

# Building Data with
building_dmg.head(2)

df=building_dmg
df['unit'] = categorize_areas(df)
df['hh_unit'] = df["Floor"] * df["unit"]

# Assume buildings will be non-operable if DS>2 (i.e., extensive or complete)
df=df[df.dmg>2]

# Dislocated households
residential_df = df[df['Occupancy'].isin(['RES1', 'RES2', 'RES3', 'RES4', 'RES5', 'RES6'])]
educational_df = df[df['Occupancy'].isin(['EDU1', 'EDU2'])]
government_df = df[df['Occupancy'].isin(['GOV1', 'GOV2'])]
industrial_df = df[df['Occupancy'].isin(['IND1', 'IND2', 'IND3', 'IND4', 'IND5', 'IND6'])]

print('Total residential buildings dislocated:', residential_df.shape[0])
print('Total households dislocated:', residential_df.hh_unit.sum())
print('Total education buildings damaged:', educational_df.shape[0])
print('Total government buildings damaged:', government_df.shape[0])
print('Total industrial buildings damaged:', industrial_df.shape[0])

9. Damage Analysis - Electrical Poles

epn_data = pd.read_csv('pole.csv')
epn_data.head()

# Running wind hazard module to estimate Cyclone track characteristics and Wind Speeds
# df_epn_wind: database return with wind speed, VG: gust wind velocity
cyclone_parameters = CycloneParameters(track_df)
df_track = cyclone_parameters.estimate_parameters()
df_epn_wind, VG = cyclone_parameters.calculate_wind_speeds(df_track, epn_data)

df_epn_wind.shape
df_epn_wind.drop(['ind'], axis=1, inplace=True)

# Assign random seed to reproduce random numbers
seed=1234
np.random.seed(seed)

epn_data = df_epn_wind

# Defining Damage States
DStates=['Fail']

# Running Vulnerability Analysis based on Fragility Curves to assign Damage States to Structures
fra= FragilityAnalysis(fragility_curves_epn)
Pr = fra.estimate_epn_damage_state(epn_data)
epn_damage_state = fra.sample_damage_state(Pr, DStates,seed)

ids, statuses = epn_damage_state
df_epn_ds = pd.DataFrame({'id': ids, 'status': statuses})

# Mapping Damage States [DStates] to Structures
DamageStateMap = {None: 0, 'Fail': 1}
df_epn_ds['dmg'] = df_epn_ds['status'].map(DamageStateMap)

# Adding columns to estimate damage State Probabilities (LS: Limit State, DS: Damage State)
DS_Prob=Pr
DS_Prob['LS1'] = DS_Prob['Fail']
DS_Prob['DS0'] = 1 - DS_Prob['Fail']
DS_Prob['DS1'] = DS_Prob['Fail']

# Merging Assigned Damage States (dmg) and DS probabilities to structure inventory
result_epn_damage= pd.merge(DS_Prob, df_epn_ds, on='id')

# plotting damage state maps
plot_scatter(result_epn_damage, 'x', 'y', 'dmg',  colorbar_label='dmg', save_path='dsm_epn.png')

# Plot Damage
node=result_epn_damage.loc[0:,'x': 'y']
node_dmg=result_epn_damage.loc[0:,'dmg']
m_epn=plot_interactive_map(node, node_dmg, node_size=3, node_cmap_bins='cut', node_cmap=None, link_cmap=None)
m_epn

Figure: Electrical Poles Damage States.

Figure: EPN Outputs on OpenStreetMap.

10. Functionality Analysis - Connecting Building & EPN Performance

# Building Inventoy is mapped to corresponding dependent EPN pole through voronoi polygon
# Voronoi polygon is a geospatial analysis to determine service area for each electrical outlet (i.e. poles)

Here are steps for conducting Voronoi analysis in QGIS (this can be done using other tools):

1. **Prepare Data:** load EPN layer and ensure it's in a projected coordinate system.
2. **Open Processing Toolbox:** go to `Processing` > `Toolbox`.
3. **Generate Voronoi Polygons:** search for `Voronoi polygons` in the toolbox, select EPN layer as input, specify output settings (study area boundary), and run the tool.
4. **Connect Building to Voronoi Layer:** intersect building layer to voronoi layer to assign dependent voronoi service area and/or dependent electrical pole. 'vid' field in the building layer is obtained through this process and vid represents epn id, as well as voronoi id corresponds to a building


# building inventory with voronoi and damage info
building_dmg.head()

# EPN data with damage state
result_epn = result_epn_damage[['id', 'dmg']].rename(columns={'dmg': 'dmg_epn','id':'id_epn'})

# Building Data - merging dmg to building invetory
blg_epn_results = pd.merge(building_dmg, result_epn, left_on='vid', right_on='id_epn')

blg_epn_results.head(2)

# Calculate Functionality State: 'FS'
df_func = calculate_fs(blg_epn_results, 'dmg', 'dmg_epn')

# Functionality Results (0: No Functionality, 1: Partially Functional, 2: Fully Functional)
df_func.FS.value_counts()
